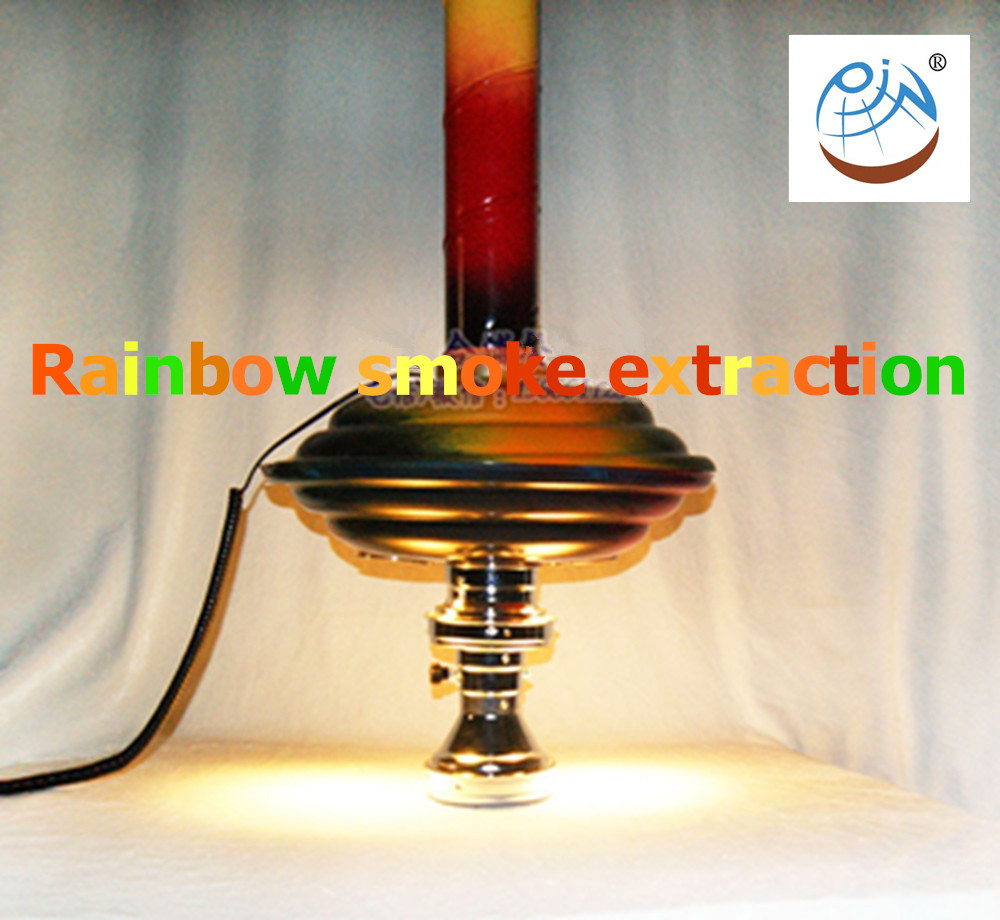

Rainbow Color Lift exhaust Smoke pipe

Rainbow color lift exhaust smoke pipe is equipped with LED spot lamp .

LED Spot Lamp:

Power: 3W

Material: Aluminum.

The Pipe is install with Spring. The minimum size is 140cm after shorten. The maximum size is 220cm after stretch.

The both ens of the pipe is Iron with Gavlvanized. The middle of the duct is stainless steel with spray coating

Standard Size: Totally two layer of the duct. The maximum length is 2.3m after stretch. Equipped with grease pan and a control valve.

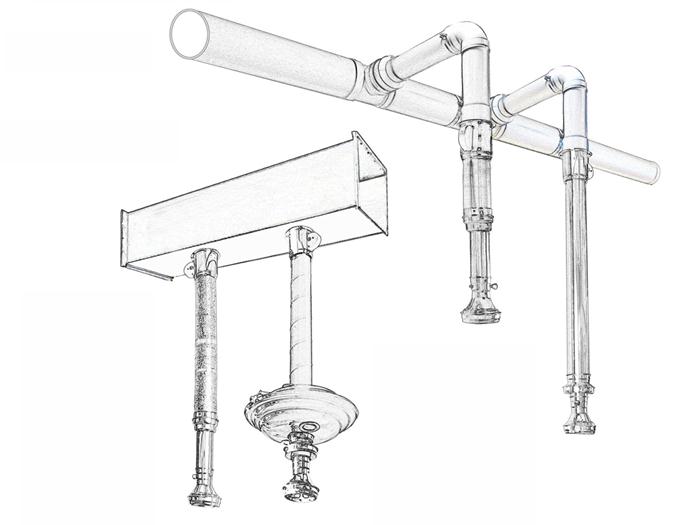

Assembling Instruction:

Depend on the dimensionof the exhaust pipe, the main Pipe should dig with a round hole. Smear with sealant. The exhaust pipe should be align with the hole of the main pipe. Drill and rivet.

The outer size of the main pipe diameter : 16cm. The inner diameter of the main pipe should be 12.5cm. The size of the smoking mouth diameter: 13cm

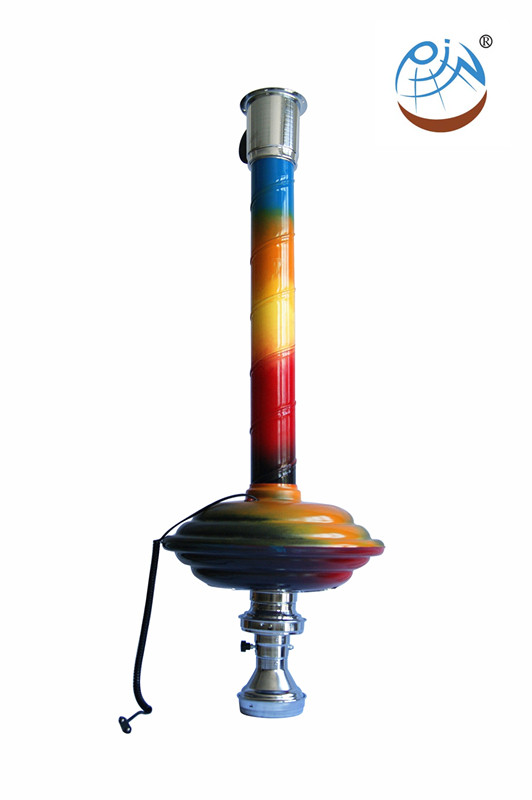

Detail about the rainbow color lift exhaust smoke pipe:
